The Lithium Box 100/40 Stubby

  • 100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron Smart Shunt Bluetooth Battery Meter. Read the battery meter from the convenience of your smart phone. Read the battery meter from the convenience of your smart phone Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • 100A Manual Resettable Master Battery Switch

  • Internal Fusing and Output Short Circuit Protection

  • x2 50A Anderson Plug Output (100A Combined) with Automatic Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge.

  • A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging (5 to 15A max).

  • A Smart Alternator Ignition Wire Input or Loop Connection

  • Weighs in at only 17.9kgs Measures 370 x 255 x 152mmH
    (Overall length includes Mounting Feet)

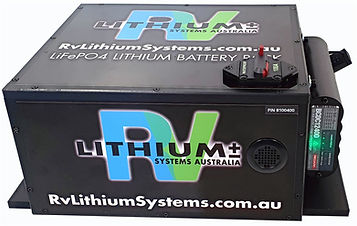

TLB 100 STUBBY Front_edited.jpg

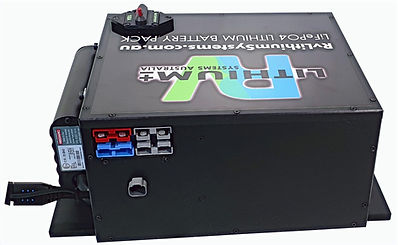

TLB 100 STUBBY Rear_edited.jpg
Victron Connect.png
