The Lithium Box 200/40
with 1200VA Inverter

  • 200Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron BMV 712 Bluetooth Battery Meter Display.
    Read the battery meter from the convenience of your smart phone
    Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A  Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • Master Battery Switch

  • 275A Twin Load BCU 175A BCU for Inverter and 100A BCU for all 12v Output Sockets.  Automatic Low Battery SOC or Voltage Disconnect of Inverter and  accessory power sockets and automatic reconnect once the battery has received adequate charge.

  • Internal Fusing and Output Short Circuit Protection

  • Victron Pheonix 1200VA Inverter.

  • 2 x 50A (max) Grey Anderson Plug Output

  • 2 x Anderson Plug for Power Output on the rear (16A max each)

  • 2 x Accessory (Cig) Sockets

  • 1 x Plug in Twin USB Adapter (Plugs in to Accessory socket)

  • 1 x Waeco/Engel Socket

  • A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging (5 to 15A max).

  • A Smart Alternator Ignition Wire Input or Loop Connection.

  • Weighs in at only 36kgs
    Measures 490 x 255 x 295mmH
    (add 30mm front and 40mm rear for mounting feet)

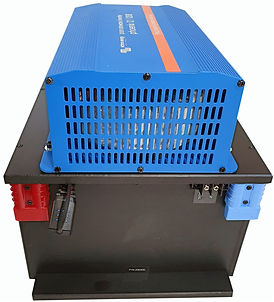

The Lithium Box 200 with 1200VA Victron Inverter
The Lithium Box 200 with 1200VA Victron Inverter
