The Lithium Box 100/40 HILUX SUPER SLIM

Fits behind the seats of Hilux Models built April 2015 to current.
Version available for Hilux Models built November 2004 to May 2015.
Please note, due to the complexities of behind-the-seat installations, these are supplied and fitted at our workshop only.

  • 100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron Smart Shunt Bluetooth Battery Meter so you can read the battery meter from the convenience of your smart phone.  Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A  Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • Master Battery Switch

  • Automatic 100A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge

  • Internal Fusing and Output Short Circuit Protection

  • x2 50A Anderson Plug Output with Automatic 100A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge.

  • A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging (5 to 15A max).

  • TLB Hilux 5/15:
    Weighs in at only 19kgs
    Measures 700 x 103 x 370mmH
    (Overall length includes 25mm rear Mounting Foot.

  • TLB Hilux 9/04:​
    Weighs in at only 19kgs
    Measures 730 x 70 x 350mmH

Victron Connect.png

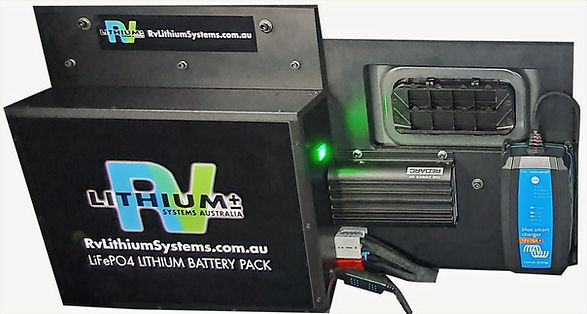

(Pictured with optional Victron IP65 15A 240V Charger)
