Super Slim HILUX Lithium

Updated: Jun 21, 2021

We've added The Lithium Box Super Slim Hilux 5/15 (TLB100 Hilux 5/15) to our range and it tucks neatly behind the seats of Hilux models April 2015 to current.

Owners of earlier models needn't worry though. We have a blueprint for November 2004 to May 2015 models too.


TLB100 Hilux 5/15 has the standard outstanding features such as:

  • 100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron Smart Shunt Bluetooth Battery Meter. Read the battery meter from the convenience of your smart phone. Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • Master Battery Switch

  • Automatic 100A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge

  • Internal Fusing and Output Short Circuit Protection

  • x2 50A Anderson Plug Output with Automatic 100A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge.

  • A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging (5 to 15A max).

For this installation we included a Victron IP65 15A, 240V Charger, pre-programmed with our custom storage profile with the plug conveniently located down the side of the rear drivers' side seat.

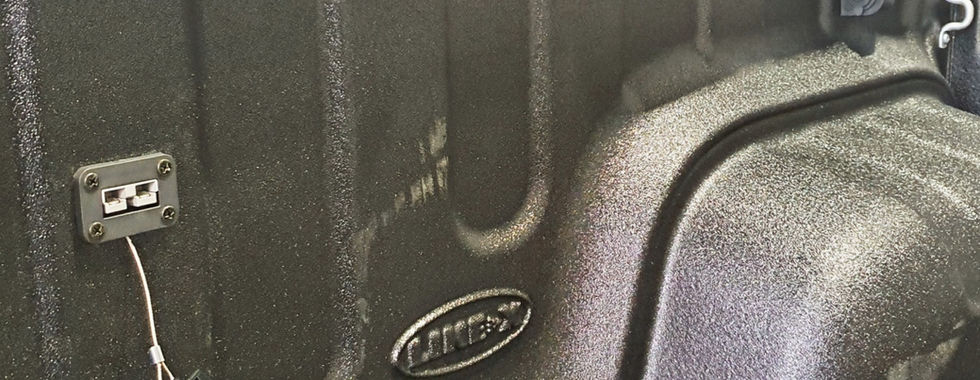

Wired to The Lithium Box is a dash mounted Toyota fit twin USB, Cig sockets in both door pillars, Cig, fridge sockets to both sides of the tub, Grey Flush mounted Anderson Plug in the tub, flush mounted Red Solar Anderson Plug Input to rear bumper and we hid the fuse box away in the compartment under the seat.

For more information email info@RvLithiumSystems.com.au
