  • Writer's pictureKylie F. Kearns

A "Tow Package" For Nev's New Rig

While enjoying that new car smell of Nev's 300 Series Landcruiser, we readied his rig for fresh adventures.


Our Tow Package included:

  • A Redarc TowPro V3 Brake Controller

  • An Anderson Plug Charge Circuit to power up the DC Charger in the Karavan to charge the batteries while driving

  • Fitted a factory Toyota Trailer Plug Assembly

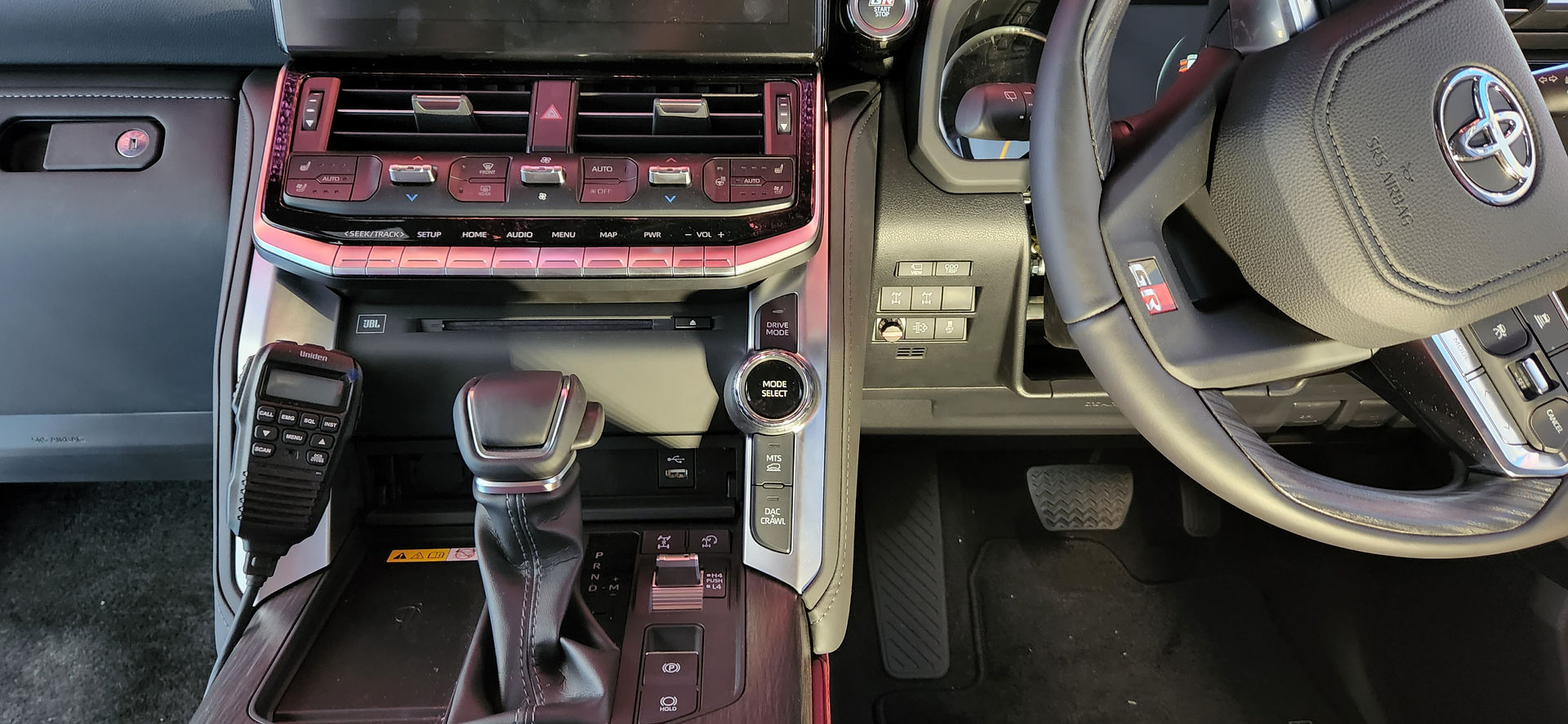

  • A Uniden UH6060 Remote microphone UHF Radio & Antenna Package

  • The Lithium Box (TLB) 100/40 Small portable battery system

  • An Anderson Plug Charge Lead to be plugged in to The Lithium Box once Nev has finished installing a false floor and mounting brackets to suit.

When Nev’s not travelling, he will unplug TLB and remove the entire floor system. He'll then plug in a Victron IP65 5A 240v BlueSmart Charger which we pre-program with a custom RV Lithium System Charge Profile, specifically for storage to keep TLB in top shape and ready for the next adventure.


The Lithium Box 100/40 Small features:

  • 100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron Smart Shunt Bluetooth Battery Meter. Read the battery meter from the convenience of your smart phone. Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • Master Battery Switch

  • Automatic 65A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge

  • Internal Fusing and Output Short Circuit Protection

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • 1 x 50A (max) Grey Anderson Plug Output

  • 1 x 50A Grey Anderson Plug Output 15A (Max) suitable for Fridge Socket

  • 2 x Accessory (Cig) Sockets

  • 1 x Waeco/Engel Socket

  • A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging

  • (5 to 15A max).

  • A Smart Alternator Ignition Wire Input or Loop Connection.

  • Weighs in at only 15kgs Measures 315 x 155 x 275mmH (add 30mm to length for mounting foot)


Contact Install A Gadget to ready your rig to tow.
